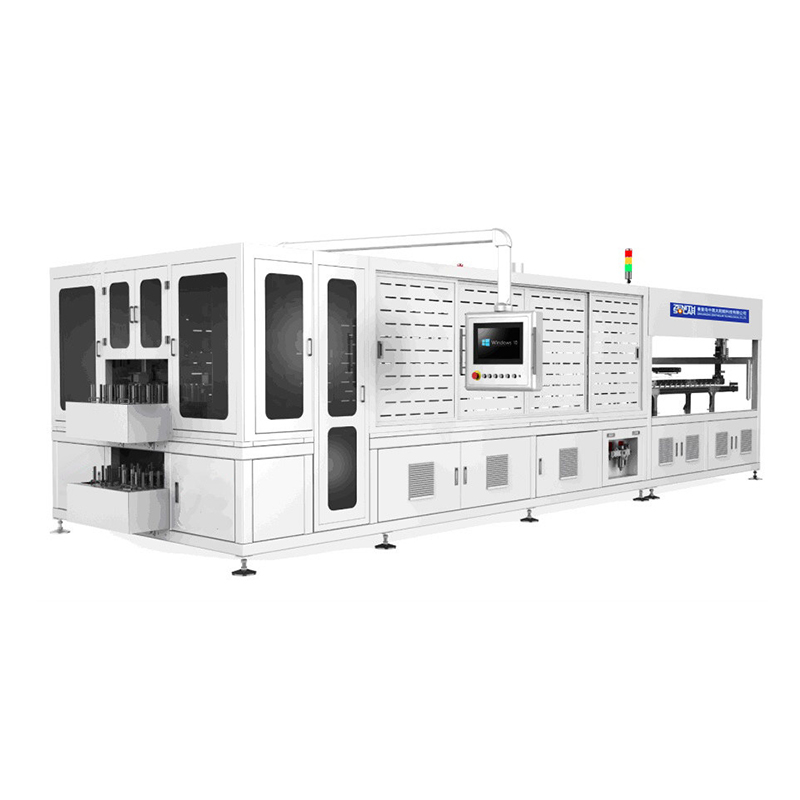

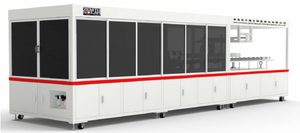

1. Equipment Introduction
For series welding of crystal silicon solar cells.
2.Product Advantages
Compatible with 156-230mm, 5BB-20BB cells.
Compatible with conventional welding strip and round welding belt.
Camera visual positioning and detection, manipulator classification and handling and
release.
Flux immersion, simple maintenance.
Original flexible pressing welding belt mechanism
Infrared heating, segment welding; welding temperature and power closed-loop control,
temperature climbing gentle, small thermal impact, effectively reduce the cell debris rate.
3. Technical Parameter
Equipment model: ZST-TS4000
Max capacity: 3,600 Cells / h
Cell size: 156-166（1/2） 182-220mm （1/3 1/2）
BB Type: 5BB-20BB
Cell thickness: 0.16-0.3mm
Cell spacing: 1.0-5.0mm
Cell string spacing: 10-40mm
Max string welding length: ≤2250mm
Welding tape specifications: Flat welding strip width 0.6-3mm ,thickness 0.18-0.32mm
Round welding tape: φ0.25-0.45mm
Fragment rate: 3 ‰ (positive grade-A film)
Fluid agent application method: Welding belt soaking
Welding method: infrared bonding
Discharge form: Manual discharge or automatic docking typesetting machine
Equipment size: 7850*2450*2250mm
Equipment weight: 7000kg
